In the following article you will find the steps to follow to be able to install your Video Doorbell on the wall.
Before beginning these steps, we recommend that you perform the pairing through the application with the WiFi network of your home and make sure that the place where you install it has sufficient network coverage to view the image transmitted by the Video Doorbell live.

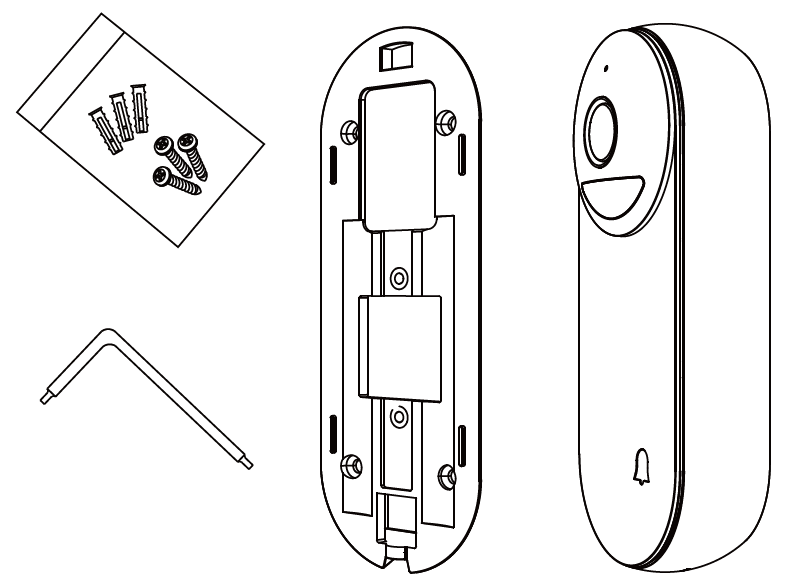

Once the previous step has been completed, and to start the installation, have the following materials included in the box of your product on hand:
- Plugs and screws
- Torx key
- Back cover
- Video Doorbell
Now, select the place where you will install your Video Doorbell. Take into account the area you want to cover before starting the installation and that the recommended installation height is 140cm high from the ground.
Once the place is selected, follow the steps explained below:

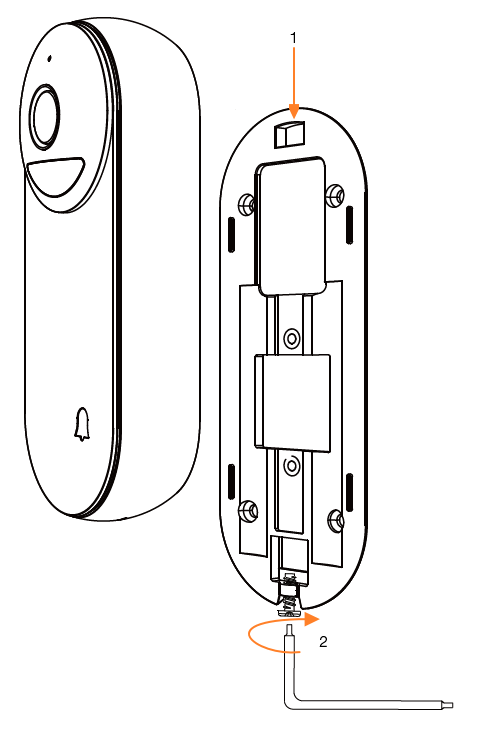

- Loosen the screw located at the bottom (it does not need to be removed from its location) of the Video Doorbell with the torx key and separate the back cover by sliding it downwards.
- Place the back cover in the chosen place and at the previously indicated height (you can help yourself with a level so that it is completely straight) and mark the 4 holes on the wall.

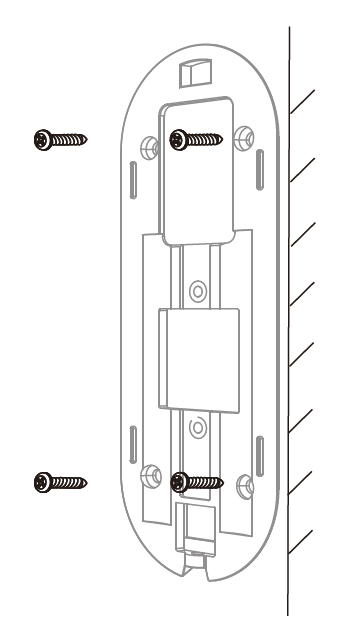

- Make the holes with the help of a drill, place the plugs on the wall and position the back cover to insert the screws.

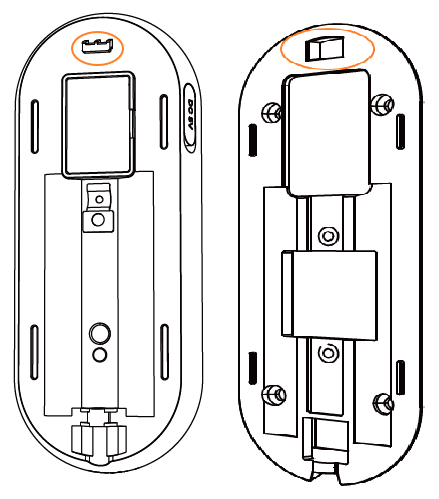

- Once the 4 screws are tightened, position the switch of the Video Doorbell to ON and face it with the rear cover; now support it by matching the notch and gap circled in orange in this image.
- Finally, you will only have to slide down and tighten the screw located at the bottom with the torx key.
Your Video Doorbell is installed and ready to be used.
